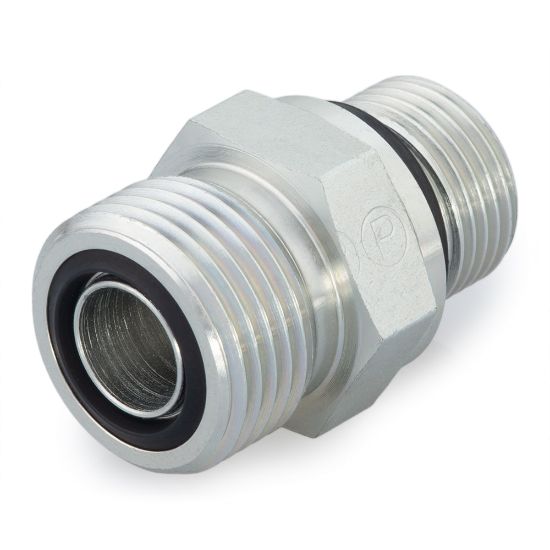

10F42EDMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	19 in stock

SKU 10F42EDMLOS

$24.55/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Type	na
Connection 2 Type	Male BSPP ED Seal	Connection 3 Thread Size	na
Specifications Met	SAE J1453	Connection 3 Tube Outside Diameter	na
Dimensional Weight	0.1079136690647482 lb	O-Ring Material	90 Durometer Nitrile
Connection 1 Type	Male O-Ring Face Seal	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Shape	Straight	Body Material	Steel
Connection 4 Type	na	Connection Type	O-ring Face Seal
Connection 4 Tube Outside Diameter	na	Division	Tube Fittings Division
Connection 2 Thread Size	1/2-14 inch	Connection 2 Tube Outside Diameter	na
Maximum Dynamic Pressure	6000 psi

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
