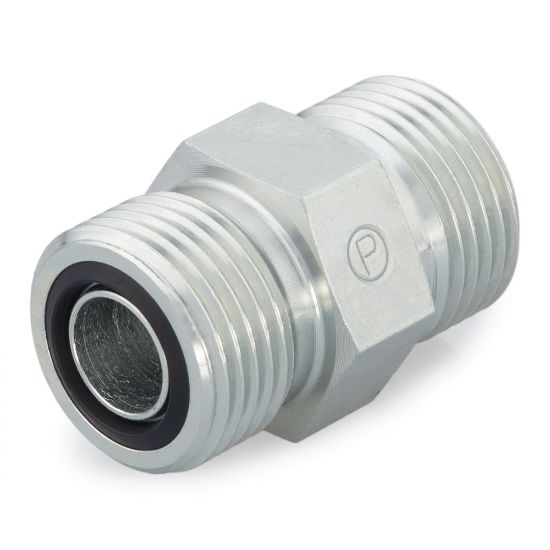

10HMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 112 days
Partner Available:	Backordered

SKU 10HMLOS

$11.94/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Male O-Ring Face Seal
Body Material	Steel	Connection 4 Type	na
O-Ring Material	90 Durometer Nitrile	Shape	Straight
Connection 4 Tube Outside Diameter	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Division	Tube Fittings Division	Connection Type	Tube to Tube with Metric Hex
Connection 2 Thread Size	na	Connection 2 Tube Outside Diameter	14, 15, 16 mm
Maximum Dynamic Pressure	6000 psi	Connection 2 Type	Male O-Ring Face Seal
Connection 3 Thread Size	na	Specifications Met	SAE J1453
Connection 3 Tube Outside Diameter	na	Connection 3 Type	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
