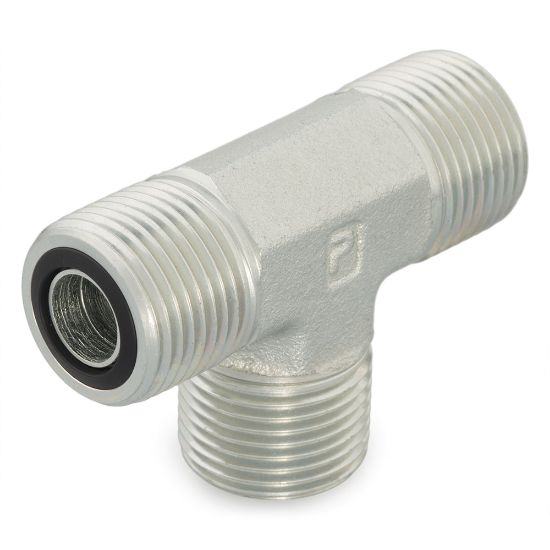

10JMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 38 days
Partner Available:	Backordered

SKU 10JMLOS

$37.53/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	O-ring Face Seal
Connection 4 Tube Outside Diameter	na	Division	Tube Fittings Division
Connection 2 Thread Size	na	Connection 2 Tube Outside Diameter	14, 15, 16 mm
Maximum Dynamic Pressure	6000 psi	Connection 3 Type	Male O-Ring Face Seal
Connection 3 Thread Size	na	Connection 2 Type	Male O-Ring Face Seal
Connection 3 Tube Outside Diameter	5/8 inch	Specifications Met	SAE J1453
O-Ring Material	90 Durometer Nitrile	Dimensional Weight	0.12336555755395684 lb
Connection 1 Type	Male O-Ring Face Seal	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Shape	Tee	Body Material	Steel
Connection 4 Type	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
