*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

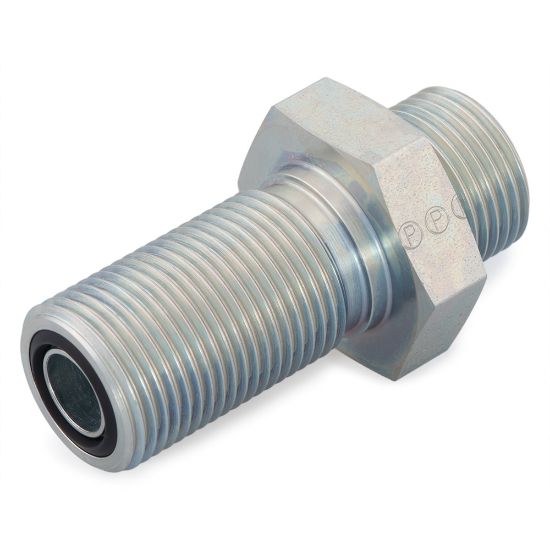

10WMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 99 days
Partner Available:	4 in stock

SKU 10WMLOS

$36.80/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Type	na
Connection 2 Type	Male O-Ring Face Seal Bulkhead	Maximum Dynamic Pressure	6000 psi
Connection 3 Tube Outside Diameter	na	Connection 3 Thread Size	na
Specifications Met	SAE J1453	O-Ring Material	90 Durometer Nitrile
Connection 1 Type	Male O-Ring Face Seal	Body Material	Steel
Connection 4 Type	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Shape	Straight	Connection 4 Tube Outside Diameter	na
Connection Type	O-ring Face Seal	Division	Tube Fittings Division
Connection 2 Thread Size	na	Connection 2 Tube Outside Diameter	5/8 inch

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
