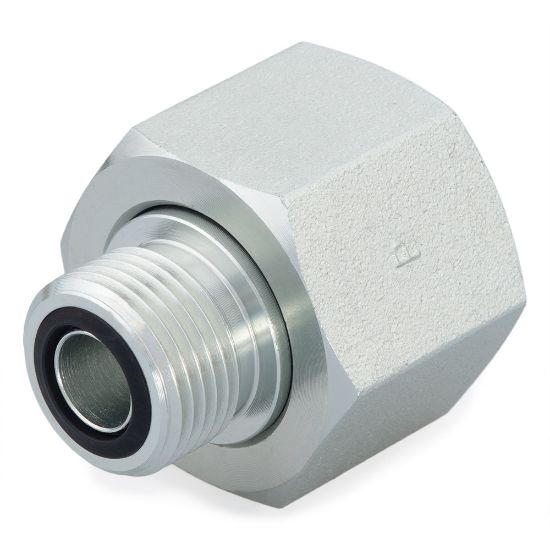

12-6 TRLON-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: 12-6 TRLON-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 12-6 TRLON-S
Price: 23.45 USD
Availability: InStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:

22 in stock

Olivette, MO	8
Wichita, KS	6
Springfield, MO	2
COLUMBIA, MO	2
Peoria, IL	2
WICHITA, KS	1
Joplin, MO	1

Partner Available:

119 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 12-6 TRLON-S

$23.45/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	O-Ring Material	90 Durometer Nitrile
Connection 1 Type	Female O-Ring Face Seal with Large Nut	Connection 1 Tube Outside Diameter	3/4 inch
Body Material	Steel	Shape	Straight
Connection 4 Tube Outside Diameter	na	Connection 4 Type	na
Connection Type	O-ring Face Seal	Division	Tube Fittings Division
Connection 2 Thread Size	na	Connection 2 Tube Outside Diameter	8, 10 mm
Maximum Dynamic Pressure	6000 psi	Connection 3 Type	na
Connection 2 Type	Male O-Ring Face Seal Tube End	Connection 3 Thread Size	na
Dimensional Weight	0.07913669064748201 lb	Connection 3 Tube Outside Diameter	na
Specifications Met	SAE J1453

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
