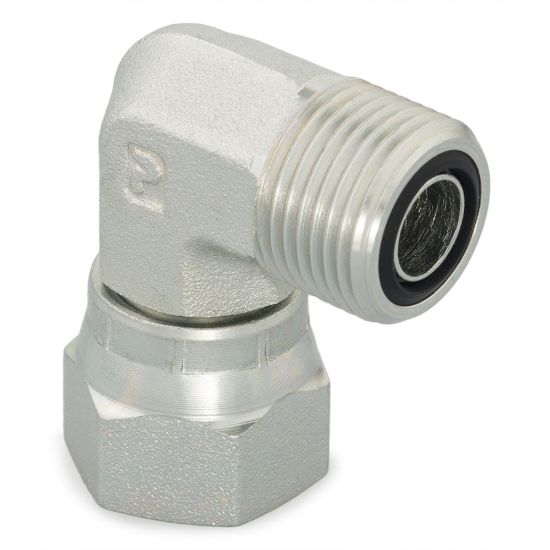

12 C6LO-SS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 38 days
Partner Available:	Backordered

SKU 12 C6LO-SS

$270.78/each

Products specifications

Attribute name	Attribute value
UOM	EA	Dimensional Weight	0.12464028776978417 lb
O-Ring Material	90 Durometer Nitrile	Connection 1 Type	Male O-Ring Face Seal
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Body Material	Stainless Steel
Shape	90° Elbow	Connection 4 Type	na
Connection 4 Tube Outside Diameter	na	Connection Type	Tube to Tube
Division	Tube Fittings Division	Connection 2 Thread Size	na
Connection 2 Tube Outside Diameter	14, 15, 16 mm	Maximum Dynamic Pressure	6000 psi
Connection 3 Type	na	Connection 2 Type	Female O-Ring Face Seal Swivel
Connection 3 Tube Outside Diameter	na	Connection 3 Thread Size	na
Specifications Met	SAE J1453

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
