*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

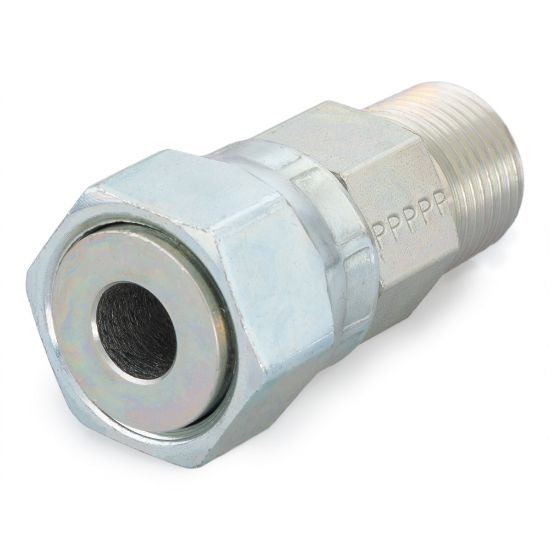

12 F6L-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: 12 F6L-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 12 F6L-S
Price: 47.92 USD
Availability: LimitedAvailability

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:

4 in stock

Springfield, MO	2
Peoria, IL	2

Partner Available:

141 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 12 F6L-S

$47.92/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube Outside Diameter	na
Connection 2 Thread Size	na	Connection 3 Type	na
Connection 2 Type	Male NPT/NPTF	Maximum Dynamic Pressure	5500 psi
Connection 3 Thread Size	na	Specifications Met	SAE J1453
Connection 3 Tube Outside Diameter	na	Dimensional Weight	0.1450359712230216 lb
Connection 4 Type	na	O-Ring Material	na
Connection 1 Type	Female O-Ring Face Seal Swivel	Connection 1 Tube Outside Diameter	3/4 inch
Body Material	Steel	Connection 4 Tube Outside Diameter	na
Shape	Straight	Connection Type	O-ring Face Seal
Division	Tube Fittings Division

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
