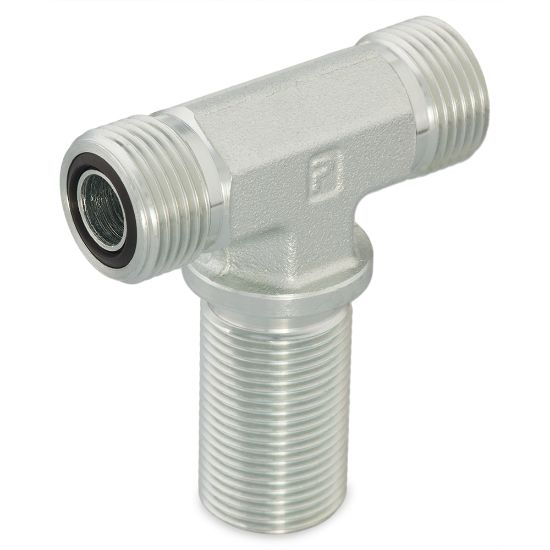

12 WJLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: 12 WJLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 12 WJLO-S
Price: 125.41 USD
Availability: LimitedAvailability

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:

1 Limited Stock

Springfield, MO

Partner Available:

22 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 12 WJLO-S

$125.41/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Tee
Body Material	Steel	Connection 4 Type	na
Connection 1 Tube Outside Diameter	3/4 inch	O-Ring Material	90 Durometer Nitrile
Connection 1 Type	Male O-Ring Face Seal	Connection 4 Tube Outside Diameter	na
Division	Tube Fittings Division	Connection Type	O-ring Face Seal
Connection 2 Tube Outside Diameter	3/4 inch	Connection 2 Thread Size	na
Maximum Dynamic Pressure	6000 psi	Connection 3 Type	Male O-Ring Face Seal Bulkhead
Connection 2 Type	Male O-Ring Face Seal	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	3/4 inch	Specifications Met	SAE J1453
Dimensional Weight	0.31160071942446044 lb

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
