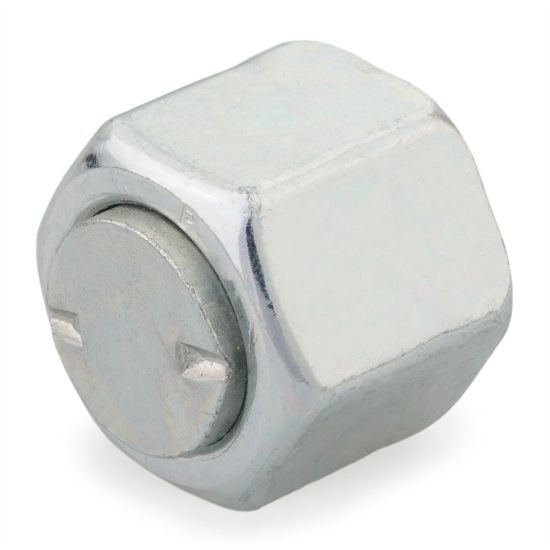

16FNMLSS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 112 days
Partner Available:	Backordered

SKU 16FNMLSS

$304.59/each

Products specifications

Attribute name	Attribute value
UOM	EA	Specifications Met	SAE J1453
Connection 3 Tube Outside Diameter	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	22, 25 mm	Shape	Cap with Metric Hex
Connection 4 Tube Outside Diameter	na	O-Ring Material	na
Body Material	Stainless Steel	Connection 4 Type	na
Connection 1 Type	Female O-Ring Face Seal	Connection 2 Thread Size	na
Connection 2 Tube Outside Diameter	na	Connection Type	O-ring Face Seal
Division	Tube Fittings Division	Maximum Dynamic Pressure	6000 psi
Connection 3 Type	na	Connection 2 Type	na
