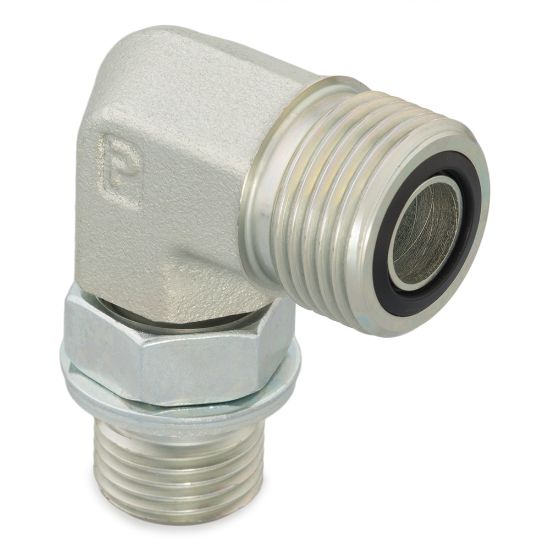

6M14C8OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 26 days
Partner Available:	6 in stock

SKU 6M14C8OMLOS

$33.31/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube Outside Diameter	8, 10 mm
Body Material	Steel	Shape	90° Elbow
Connection 4 Tube Outside Diameter	na	O-Ring Material	90 Durometer Nitrile
Connection 1 Type	Male O-Ring Face Seal	Connection 4 Type	na
Connection 2 Thread Size	na	Connection Type	O-ring Face Seal
Division	Tube Fittings Division	Maximum Dynamic Pressure	3600 psi
Connection 2 Tube Outside Diameter	na	Dimensional Weight	0.03084138938848921 lb
Connection 3 Type	na	Connection 3 Tube Outside Diameter	na
Connection 2 Type	Male Metric O-Ring Retaining Ring	Specifications Met	SAE J1453
Connection 3 Thread Size	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
