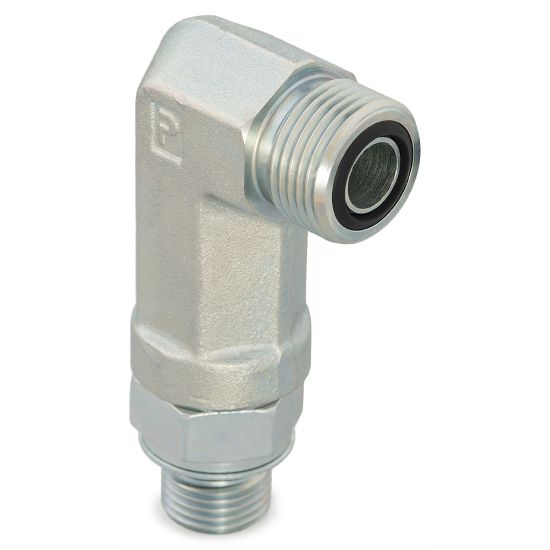

6M14CC87OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 6M14CC87OMLOS

$50.00/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Male O-Ring Face Seal - Long
O-Ring Material	90 Durometer Nitrile	Dimensional Weight	0.044946043165467624 lb
Connection 3 Tube Outside Diameter	na	Specifications Met	SAE J1453, ISO 8434-3
Connection Type	O-ring Face Seal	Connection 4 Tube Outside Diameter	na
Body Material	Steel	Shape	90° Elbow
Connection 4 Type	na	Connection 1 Tube Outside Diameter	8, 10 mm
Connection 2 Tube Outside Diameter	na	Division	Tube Fittings Division
Connection 2 Thread Size	na	Connection 2 Type	Male ISO 6149
Connection 3 Thread Size	na	Connection 3 Type	na
Maximum Dynamic Pressure	3600 psi

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
