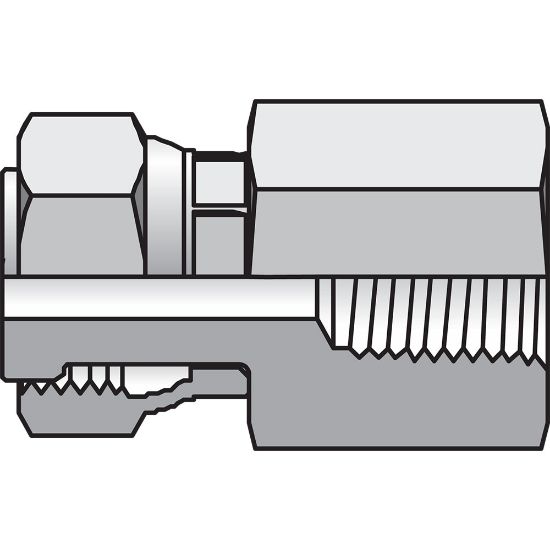

8-4 G6L-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	35 in stock

SKU 8-4 G6L-S

$21.50/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 4 Tube Outside Diameter	na
Connection Type	O-ring Face Seal	Body Material	Steel
Shape	Straight	Connection 4 Type	na
O-Ring Material	na	Connection 1 Tube Outside Diameter	12 mm
Connection 2 Tube Outside Diameter	na	Connection 2 Thread Size	1/4-18 inch
Division	Tube Fittings Division	Connection 2 Type	Female NPT/NPTF
Connection 3 Thread Size	na	Connection 3 Type	na
Maximum Dynamic Pressure	6000 psi	Connection 1 Type	Female O-Ring Face Seal Swivel
Dimensional Weight	0.044190647482014386 lb	Connection 3 Tube Outside Diameter	na
Specifications Met	SAE J1453

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)

Literature and Reference Materials
