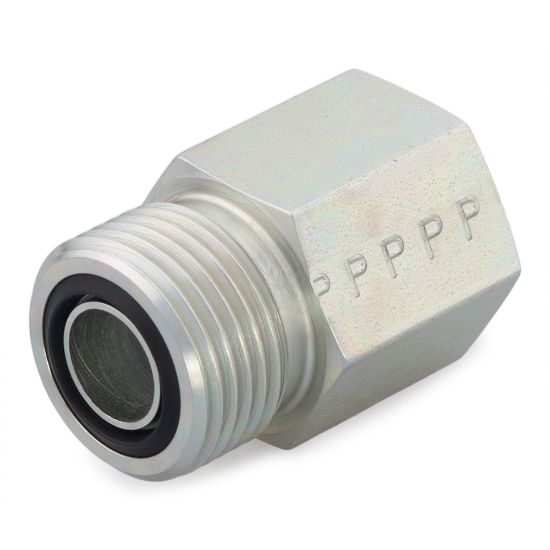

8-4 GLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 42 days
Partner Available:	Backordered

SKU 8-4 GLO-S

$14.24/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Type	Male O-Ring Face Seal
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J1453
Dimensional Weight	0.07913669064748201 lb	Connection 3 Tube Outside Diameter	na
Connection Type	Tube to NPT	Shape	Straight
Connection 4 Tube Outside Diameter	na	Body Material	Steel
Connection 4 Type	na	Connection 1 Tube Outside Diameter	1/2 inch
Connection 2 Tube Outside Diameter	na	Division	Tube Fittings Division
Connection 2 Thread Size	na	Connection 2 Type	Female NPT/NPTF
Connection 3 Thread Size	na	Connection 3 Type	na
Maximum Dynamic Pressure	6000 psi

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)

Literature and Reference Materials
