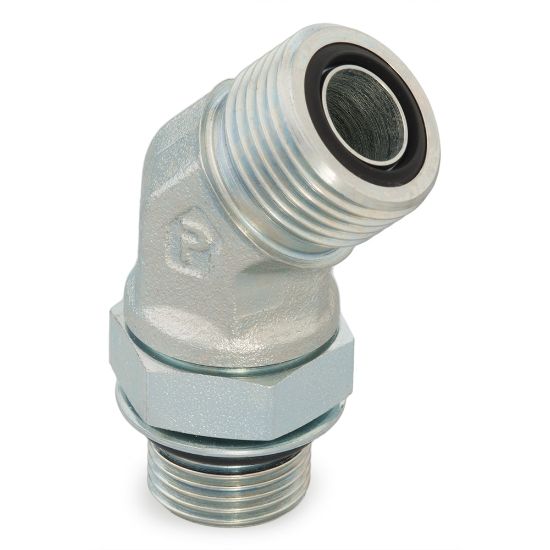

8-8V4OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: 8-8V4OMLOS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 8-8V4OMLOS
Price: 140.98 USD
Availability: InStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:

8 in stock

Kansas City, KS

Partner Available:

1 Limited Stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 8-8V4OMLOS

$140.98/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube Outside Diameter	12 mm
Connection 4 Type	na	Shape	45° Elbow
Body Material	Steel	O-Ring Material	90 Durometer Nitrile
Dimensional Weight	0.19784172661870503 lb	Connection 1 Type	Male O-Ring Face Seal
Division	Tube Fittings Division	Connection Type	O-ring Face Seal
Connection 4 Tube Outside Diameter	na	Maximum Dynamic Pressure	4000 psi
Connection 2 Thread Size	1/2-14 inch	Connection 2 Tube Outside Diameter	na
Connection 3 Tube Outside Diameter	na	Specifications Met	SAE J1453
Connection 3 Type	na	Connection 3 Thread Size	na
Connection 2 Type	Male BSPP O-Ring Retaining Ring

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
