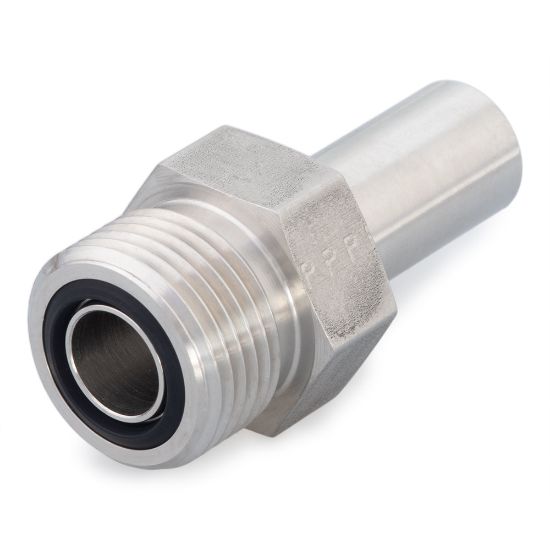

8-8X065 LOHT3-SS - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 8-8X065 LOHT3-SS

$86.80/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Connection 2 Thread Size	na	Connection Type	O-ring Face Seal
Maximum Dynamic Pressure	5500 psi	Connection 2 Tube Outside Diameter	1/2 inch
Specifications Met	SAE J1453	Connection 3 Tube Outside Diameter	na
Connection 3 Type	na	Connection 2 Type	Male Butt Weld
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	1/2 inch
Body Material	Stainless Steel	Shape	Straight
Connection 4 Type	na	Connection 4 Tube Outside Diameter	na
Dimensional Weight	0.07913669064748201 lb	O-Ring Material	90 Durometer Nitrile
Connection 1 Type	Male O-Ring Face Seal

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
