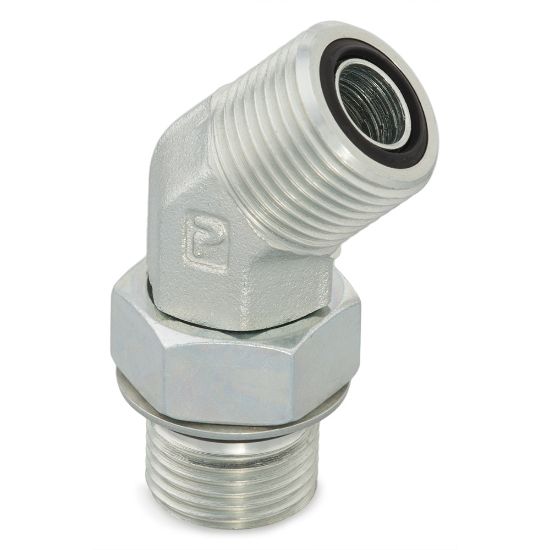

8 V5OLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: 8 V5OLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 8 V5OLO-S
Price: 14.08 USD
Availability: InStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:

17 in stock

Wichita, KS	4
WICHITA, KS	2
COLUMBIA, MO	2
Joplin, MO	2
Peoria, IL	2
Decatur, IL	2
Springfield, MO	1
Kansas City, KS	1
Olivette, MO	1

Partner Available:

603 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 8 V5OLO-S

$14.08/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	45° Elbow
Connection 4 Tube Outside Diameter	na	O-Ring Material	90 Durometer Nitrile
Connection 1 Tube Outside Diameter	1/2 inch	Body Material	Steel
Connection 4 Type	na	Connection 1 Type	Male O-Ring Face Seal
Connection 2 Thread Size	3/4-16 inch	Connection 2 Tube Outside Diameter	na
Connection Type	O-ring Face Seal	Division	Tube Fittings Division
Maximum Dynamic Pressure	6000 psi	Connection 3 Type	na
Connection 2 Type	Male SAE-ORB	Dimensional Weight	0.04934622302158273 lb
Connection 3 Tube Outside Diameter	na	Specifications Met	SAE J1453
Connection 3 Thread Size	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)

Literature and Reference Materials
