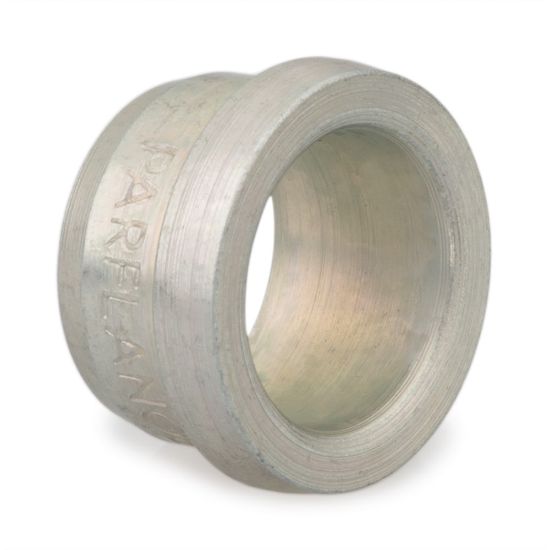

TPLS10 - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 99 days
Partner Available:	97 in stock

SKU TPLS10

$4.23/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Thread Size	na
Connection 2 Type	na	Connection 3 Type	na
Maximum Dynamic Pressure	na	Connection 1 Type	Parflange Sleeve - Metric
O-Ring Material	na	Connection 3 Tube Outside Diameter	na
Specifications Met	SAE J1453	Connection 4 Tube Outside Diameter	na
Connection Type	O-ring Face Seal	Shape	Sleeve
Body Material	Steel	Connection 4 Type	na
Connection 1 Tube Outside Diameter	10 mm	Connection 2 Tube Outside Diameter	na
Connection 2 Thread Size	na	Division	Tube Fittings Division

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
