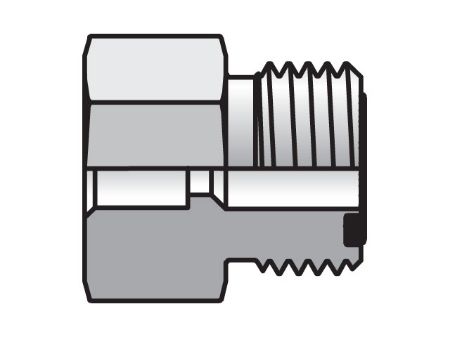

Seal-Lok ORFS Straight LOHB3
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Seal-Lok O-Ring Face Seal Tube Fittings have proven to be very effective in eliminating leakage at the higher pressures found in today’s hydraulic systems. The Seal-Lok fitting is an O-ring face seal type fitting that consists of a nut, a body, an O-ring and a sleeve. Seal-Lok fittings are suitable for a wide range of tube wall thicknesses and are readily adaptable to pipe, inch or metric tubing and hose.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Material | End 2 | Pkg Qty/UOM | Pkg Qty | End 1 | Parker Group | Parker Division | Configuration Type | Material | Inch/Metric | End 1 | End 1 Type | End 2 Type | Series | Tube Fitting/Adapter Type | Trade Name | Configuration Sub-Type | End 2 | O-Ring/Seal Material | O-Ring/Seal Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 12-16 LHB3-S | Backordered | Backordered | $23.44/each | EA | EA | Steel | 1 Inch | 5 EA | 5 | 3/4 Inch | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 3/4 Inch | Inch | Inch | ORFS | ORFS, Seal-Lok O-Ring Face Seal | Seal-Lok | Braze Connector ORFS / Braze Socket | 1 Inch | |||
| 16 LHB3-S | Backordered | Backordered | $14.61/each | EA | EA | Steel | 1 Inch | 10 EA | 10 | 1 Inch | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 1 Inch | Inch | Inch | ORFS | ORFS, Seal-Lok O-Ring Face Seal | Seal-Lok | Braze Connector ORFS / Braze Socket | 1 Inch | |||
| 16-20 LHB3-S | Backordered | Backordered | $53.26/each | EA | EA | Steel | 1 1/4 Inch | 5 EA | 5 | 1 Inch | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 1 Inch | Inch | Inch | ORFS | ORFS, Seal-Lok O-Ring Face Seal | Seal-Lok | Braze Connector ORFS / Braze Socket | 1 1/4 Inch | |||
| 20 LHB3-S | Backordered | Backordered | $50.09/each | EA | EA | Steel | 1 1/4 Inch | 10 EA | 10 | 1 1/4 Inch | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 1 1/4 Inch | Inch | Inch | ORFS | ORFS, Seal-Lok O-Ring Face Seal | Seal-Lok | Braze Connector ORFS / Braze Socket | 1 1/4 Inch | |||
| 20-24 LOHB3-S FKM | Backordered | Backordered | $48.34/each | EA | EA | Steel | 1 1/2 Inch | 2 EA | 2 | 1 1/4 Inch | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 1 1/4 Inch | Inch | Inch | ORFS | ORFS, Seal-Lok O-Ring Face Seal | Seal-Lok | Braze Connector ORFS / Braze Socket | 1 1/2 Inch | Fluorocarbon | Fluorocarbon | |
| 6 LHB3-S | Backordered | Backordered | $6.20/each | EA | EA | Steel | 3/8 Inch | 25 EA | 25 | 3/8 Inch | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 3/8 Inch | Inch | Inch | ORFS | ORFS, Seal-Lok O-Ring Face Seal | Seal-Lok | Braze Connector ORFS / Braze Socket | 3/8 Inch | |||
| 8 LHB3-S | Backordered | Backordered | $6.89/each | EA | EA | Steel | 1/2 Inch | 25 EA | 25 | 1/2 Inch | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 1/2 Inch | Inch | Inch | ORFS | ORFS, Seal-Lok O-Ring Face Seal | Seal-Lok | Braze Connector ORFS / Braze Socket | 1/2 Inch | |||
| 8-6 LHB3-S | Backordered | 8 in stock | $57.74/each | EA | EA | Steel | 3/8 Inch | 5 EA | 5 | 1/2 Inch | Fluid Connector | Tube Fitting | Straight | Steel | Inch | 1/2 Inch | Inch | Inch | ORFS | ORFS, Seal-Lok O-Ring Face Seal | Seal-Lok | Braze Connector ORFS / Braze Socket | 3/8 Inch |
