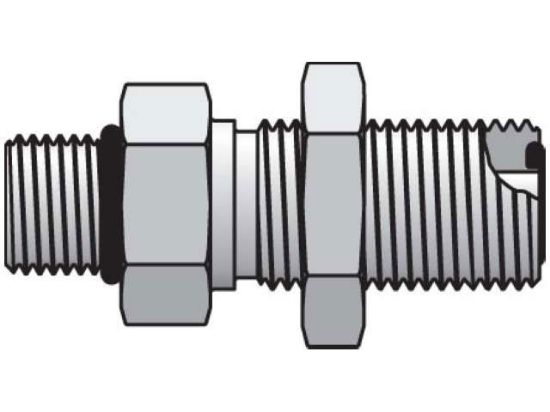

6 WF5L-S - Seal-Lok ORFS Straight WF5OLO

Seal-Lok - Straight Thread Bulkhead Connector ORFS / SAE-ORB

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 6 WF5L-S

$40.40/each

Products specifications

Attribute name	Attribute value
UOM	EA	End 1	3/8 Inch
UOM	EA	End 2	9/16-18 UN/UNF-2A
Material	Steel	Pkg Qty/UOM	5 EA
Pkg Qty	5	Parker Group	Fluid Connector
Parker Division	Tube Fitting	Configuration Type	Straight
Material	Steel	Inch/Metric	Inch
End 1	3/8 Inch	End 1 Type	Inch
Series	ORFS	Tube Fitting/Adapter Type	ORFS, Seal-Lok O-Ring Face Seal
End 2 Type	UN/UNF-2A	Trade Name	Seal-Lok
End 2	9/16-18 UN/UNF-2A	Configuration Sub-Type	Straight Thread Bulkhead Connector ORFS / SAE-ORB

Product resources

Seal-Lok O-Ring Face Seal Fittings (PDF)
