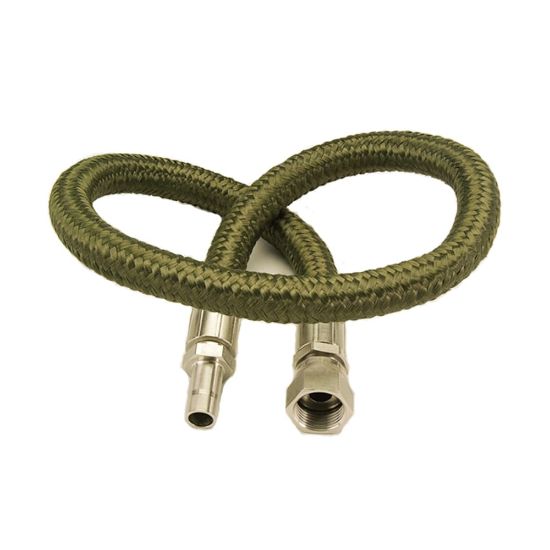

06-NCB - Seamless Convoluted PTFE with Nomex® Braid - NCW/NCB

PTFE hose with a nomex braid eliminates RFI issues and theyare also less susceptible to cracking from stress or flexing than metal hose assemblies.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	Backordered

SKU 06-NCB

$34.16/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Hose Style	Static-Dissipative
Hose I.D. (inch)	0.37	Application	Food & Beverage Processing
Outside Diameter	14.7 mm	Weight	0.09 kg/m
Maximum Operating Pressure	2.8 MPa	Inside Diameter	10 mm
Vacuum Pressure Rating	711.2 mm-Hg	Division	Parflex Division
Maximum Operating Temperature	400 °F	Compatible Fitting	PAGE Series
Hose Inner Tube Material	Polytetrafluoroethylene (PTFE) Static Dissipative	Size	-6
Media	Water	Product Type	PTFE Hose
Design Factor	4:1	Cover Material	n/a
Specifications Met	USP Class VI (compliant core tube)	Product Style	Static Dissipative
Minimum Operating Temperature	-73 °C	Hose Reinforcement Material	Green Nomex
Minimum Bend Radius	38 mm
