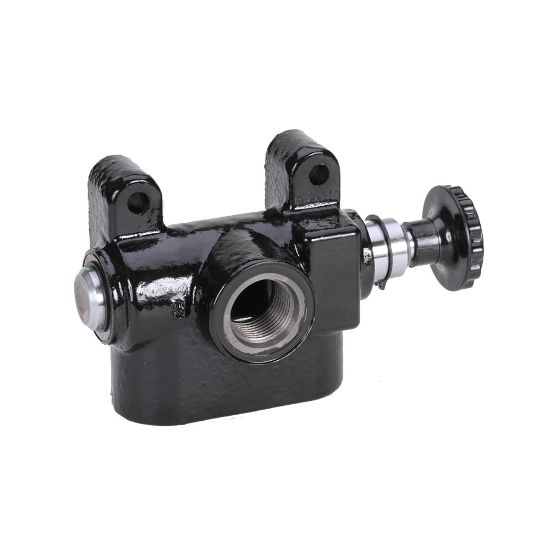

HM-8 - Selector Valve - S & H Series

Parker’s S, H, SM, & HM are two position Selector Valves. The S & SM Models are designed for directing an input flow to two different selectable circuits. The H & HM Models are designed for adding float (or freewheeling) functionality to a circuit.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU HM-8

$235.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Style	Float Selector
Mounting	Manifold	Port Size	SAE-8
Actuation Type	Manual	Body Material	High Strength Cast Iron
Weight	2.3 lb	Maximum Operating Pressure	3000 psi
Connection Type	SAE	For Fluid Type	Hydraulic Oil
Maximum Operating Temperature	+200 °F	Division	Hydraulic Valve Systems Division
Maximum Flow Rate	10	Connection Size	#8
Seal Material	Nitrile	Function	Selector Valve
Adjustment Mechanism	Knob	Minimum Operating Temperature	-40 °F
