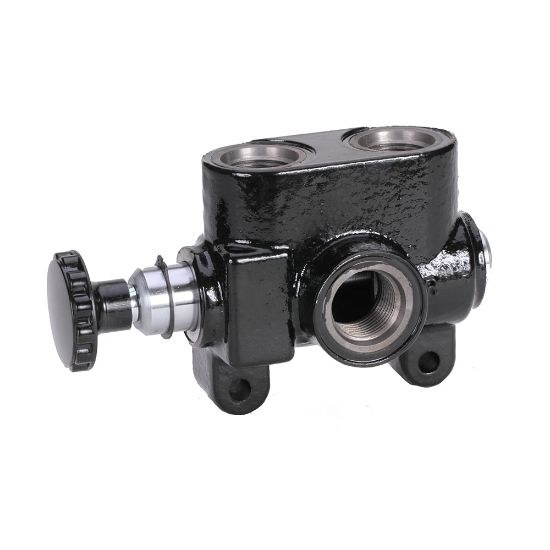

S-8 - Selector Valve - S & H Series

Parker’s S, H, SM, & HM are two position Selector Valves. The S & SM Models are designed for directing an input flow to two different selectable circuits. The H & HM Models are designed for adding float (or freewheeling) functionality to a circuit.

Manufacturer: Parker

Availability:

15 in stock

Wichita, KS

Partner Available:

4 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU S-8

$192.80/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting	In-Line
Port Size	SAE-8	Style	Circuit Selector
Division	Hydraulic Valve Systems Division	Actuation Type	Manual
Maximum Flow Rate	20	Maximum Operating Pressure	3000 psi
Maximum Operating Temperature	+200 °F	Minimum Operating Temperature	-40 °F
Body Material	High Strength Cast Iron	Seal Material	Nitrile
Weight	2.3 lb	Connection Size	#8
Connection Type	SAE	For Fluid Type	Hydraulic Oil
Function	Selector Valve	Adjustment Mechanism	Knob
Style	Circuit Selector	Port Size	SAE-8
Parker Group	Hydraulic	Mounting Type	In-Line
Parker Division	Hydraulic Valve
