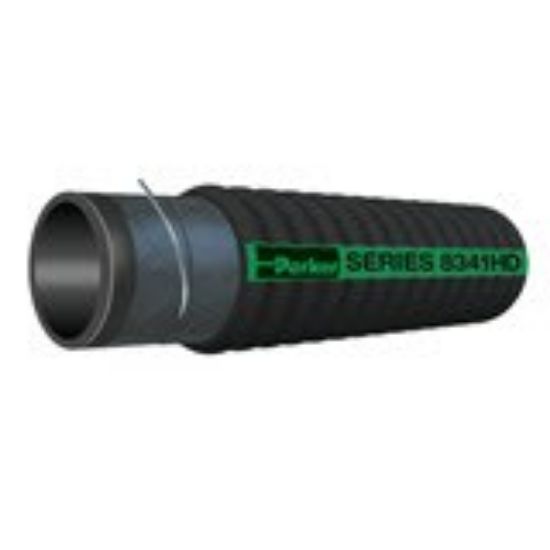

8341HD-8000-33 - Series 8341HD DAY-LITE® Corrugated Material HandlingHose

Parker’s new DAY-LITE 8341HD® designed for use in daylighting to both excavate and remove soil allowing to safely expose utility lines and underground pipes.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 10 days
Partner Available:	22 in stock

SKU 8341HD-8000-33

$195.84/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-8
Weight	9.8 lb/ft	Outside Diameter	9.3 inch
Maximum Operating Pressure	5 bar	Inside Diameter	203.2 mm
Quantity per Box	33 ft (1 continuous piece)	Application	Material Handling
Division	Hose Products Division	Vacuum Pressure Rating	Full
Media	Wet Abrasive Powders	Design Factor	3:1
Hose Inner Tube Material	Natural Rubber (NR)/Styrene Butadiene Rubber (SBR) Blend Static Dissipative	Maximum Operating Temperature	180 °F
Specifications Met	n/a	Minimum Operating Temperature	-40 °C
Minimum Bend Radius	28 inch
