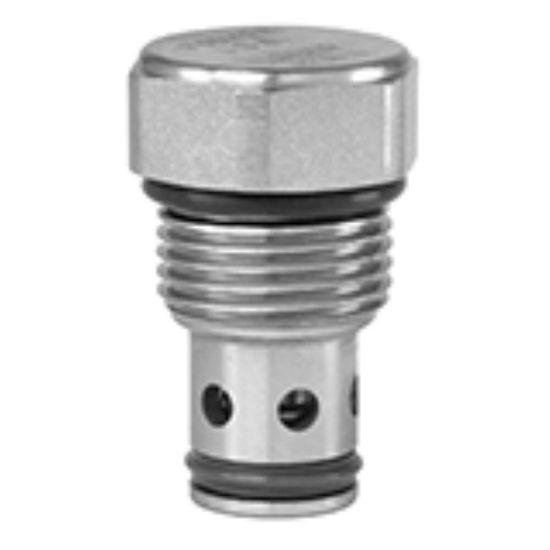

CVH104P - Side to Nose Check Valves

Name: CVH104P - Side to Nose Check Valves
SKU: CVH104P
Availability: LimitedAvailability

Parker check valves designed for “reverse” flow from the side port (port 2) to the end port (port 1) from 19 to 500 lpm (5 to 132 gpm) and pressures up to 420 bar (6,000 psi), allowing manifold space optimization while achieving superior performance.

Manufacturer: Parker

Availability:

1 Limited Stock

Wichita, KS

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CVH104P

POR

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Maximum Flow Rate	5 GAL/MIN, 34 L/MIN	Cracking Pressure	45 PSI, 3.1 BAR
Minimum Operating Temperature	-35	Cavity Size	C10-2
Flow Rate	5	Actuation Type	Pressure Sensing
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-35 to 200	Maximum Operating Pressure	350
Body Material	n/a	Division	Hydraulic Systems Division
Weight	0.18	Installation Torque	51 to 55
Maximum Operating Temperature	200	Leak Rate	2 drops/min @ 5000 Psi (350 bar)
Minimum Operating Pressure	5000	For Fluid Type	Synthetic Hydraulic Fluids
Maximum Flow Rate	5	Valve Material	Steel (all parts)
Division	Hydraulic Valve Systems Division	Maximum Inlet Pressure Rating	5000
Seal Material	D-Ring (Standard)	Function	Side to Nose Check
Flow Direction	2-1 Free Flow	Cracking Pressure	45
