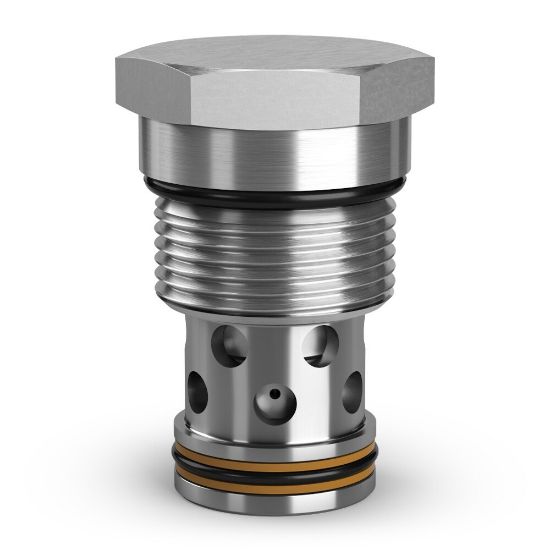

D06C2-2.5N - Side to Nose Check Valves

Parker check valves designed for “reverse” flow from the side port (port 2) to the end port (port 1) from 19 to 500 lpm (5 to 132 gpm) and pressures up to 420 bar (6,000 psi), allowing manifold space optimization while achieving superior performance.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	12 in stock

SKU D06C2-2.5N

$333.00/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Cracking Pressure	36 PSI, 2.5 BAR	Maximum Flow Rate	132 GAL/MIN, 500 L/MIN
Cavity Size	C16-2	Minimum Operating Temperature	-30 °F
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Flow Rate	500 L/min
Maximum Operating Pressure	420 bar	Weight	0.57 lb
Actuation Type	Pressure Sensing	Operating Temperature	-30 to 250 °F
Filter Efficiency Rating	ISO 4406 18/16/13	Installation Torque	74 lb-ft
Body Material	n/a	Division	Mobile Hydraulic Systems Division Europe
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Synthetic Hydraulic Fluids
Seal Material	Nitrile	Valve Material	Steel (all parts)
Maximum Flow Rate	500 L/min	Leak Rate	3 drops/min @ 6000 Psi (420 bar)
Maximum Operating Temperature	121 °C	Minimum Operating Pressure	6000 psi
Maximum Inlet Pressure Rating	420 bar	Function	Side to Nose Check
Cracking Pressure	2.5 bar	Flow Direction	1-2 Checked
