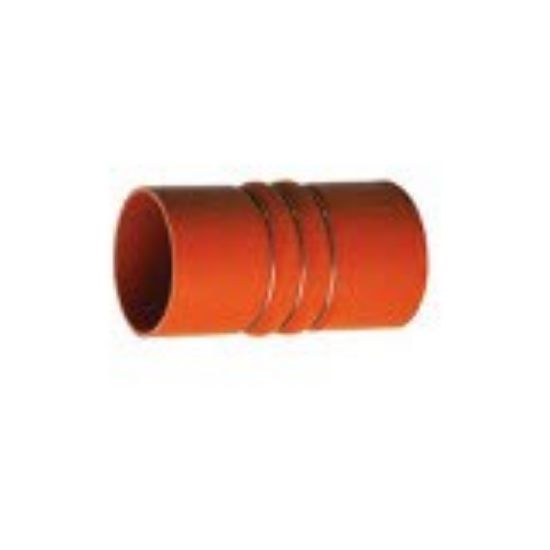

6823-40008000 - Silicone Extreme High Temperature Charge Air Cooler Hose, Series 6823

Silicone Extreme High Temperature Charge Air Cooler Hose is designed to connect, align and transfer the hot exhaust air from the charging system of heavy duty engine applications to 500°F and 25 psi, Series 6823

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	4 in stock

SKU 6823-40008000

$101.42/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Minimum Burst Pressure (psi)	80
Hose I.D. (inch)	4	Standard Package Quantity	6 x 8-in lg
Minimum Burst Pressure	80	Specifications Met	SAE J20R5
Application	Engine	Maximum Operating Pressure	80
Inside Diameter	4	Outside Diameter	4.220
Weight	0.74	Division	Hose Products Division
Maximum Operating Temperature	500	Hose Inner Tube Material	Brick Red
Media	Air (Hot Air)	Cover Material	Silicone
Minimum Operating Temperature	-65	Minimum Bend Radius	n/a
Hose Reinforcement Material	4 Plies of High Temperature Aramid (with external Stainless Steel Retaining Rings)

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
