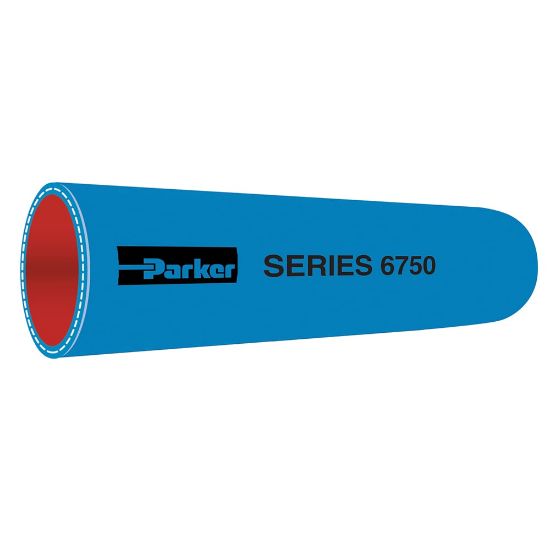

6750-1125003 - Silicone Standard Wall High Temperature Coolant Hose, Series 6750

Silicone Standard Wall High Temperature Coolant Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 350°F and 159 psi, Series 6750

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	7 in stock

SKU 6750-1125003

$122.78/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	1-1/8
Minimum Burst Pressure (psi)	299	Application	Silicone Coolant
Specifications Met	SAE J20R1, Class A	Minimum Burst Pressure	299 psi
Package Type	Carton	Inside Diameter	1-1/8 inch
Quantity per Box	1 x 3-ft Lengths	Maximum Operating Pressure	7 bar
Outside Diameter	37.3 mm	Cover Color	Blue
Weight	1.75 kg/m	Maximum Operating Temperature	176 °C
Division	Hose Products Division	Hose Inner Tube Material	Brick Red
Media	Coolants	Hose Reinforcement Material	Multiple Plies of High Temperature Textile
Cover Structure	Glossy	Minimum Bend Radius	n/a
Cover Material	Silicone	Minimum Operating Temperature	-54 °C

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
