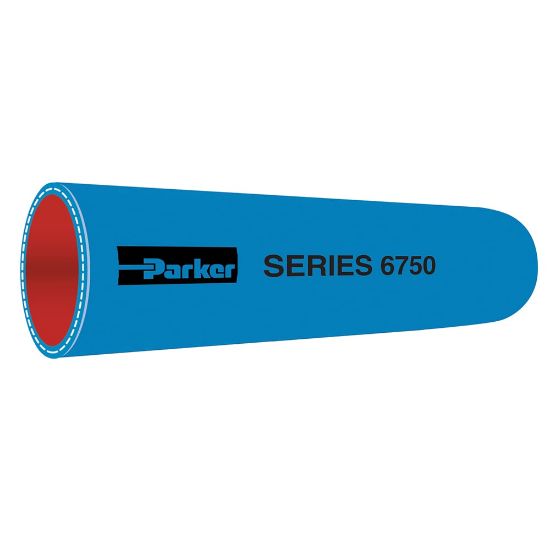

6750-1500003 - Silicone Standard Wall High Temperature Coolant Hose, Series 6750

Silicone Standard Wall High Temperature Coolant Hose is designed for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment in applications to 350°F and 159 psi, Series 6750

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	8 in stock

SKU 6750-1500003

$146.42/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Hose I.D. (inch)	1-1/2
Minimum Burst Pressure (psi)	249	Media	Water
Cover Material	Silicone	Specifications Met	SAE J20R1, Class A
Minimum Burst Pressure	17.2 bar	Hose Reinforcement Material	Multiple Plies of High Temperature Textile
Minimum Operating Temperature	-54 °C	Cover Structure	Glossy
Minimum Bend Radius	n/a	Quantity per Box	1 x 3-ft Lengths
Package Type	Carton	Application	Engine
Weight	1.49 lb/ft	Outside Diameter	1.850 inch
Maximum Operating Pressure	6 bar	Inside Diameter	38.1 mm
Cover Color	Blue	Division	Hose Products Division
Hose Inner Tube Material	Silicone	Maximum Operating Temperature	350 °F

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
