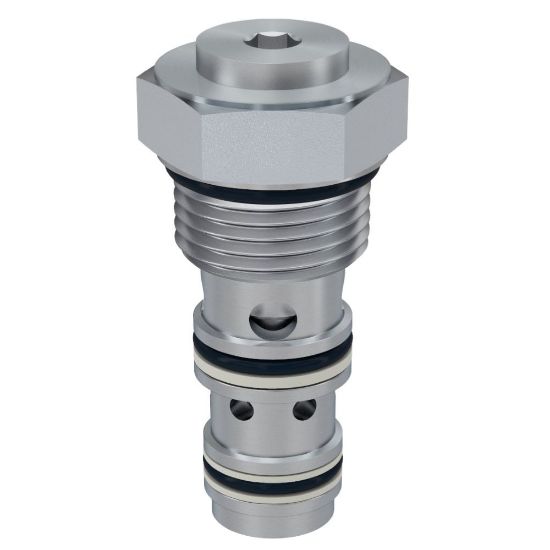

CP084P85 - Single Pilot Operated, Pilot to Open Check Valves

Name: CP084P85 - Single Pilot Operated, Pilot to Open Check Valves
SKU: CP084P85
Price: 55.46 USD
Availability: InStock

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

Manufacturer: Parker

Availability:

233 in stock

Wichita, KS

233

Partner Available:

Backordered

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CP084P85

$55.46/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	5 GAL/MIN, 19 L/MIN
Seal Material	Nitrile	Cracking Pressure	85 PSI, 5.9 BAR
Division	Hydraulic Systems Division	Pilot Pressure Ratio	3:1
Installation Torque	23 lb-ft	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	19 L/min	For Fluid Type	Mineral-based Hydraulic Fluids
Seal Material	Nitrile	Maximum Inlet Pressure Rating	207 bar
Leak Rate	5	Maximum Operating Temperature	121 °C
Valve Material	Steel	Flow Direction	2-3 Free Flow
Function	Single Pilot to Open Check	Cracking Pressure	5.9 bar
Cavity Size	C08-3	Minimum Operating Temperature	-34 °C
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-30 to 250 °F
Flow Rate	n/a	Filter Efficiency Rating	SAE Class 4
Maximum Operating Pressure	207 bar	Weight	0.05 kg
Pilot Location	1	Body Material	n/a
Actuation Type	Pilot Operated
