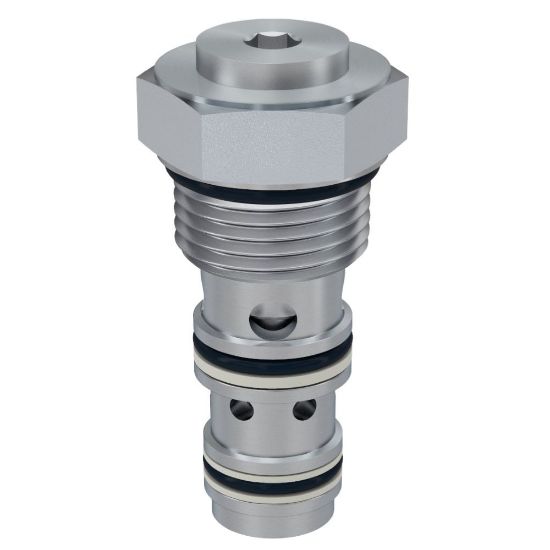

CP084P85V - Single Pilot Operated, Pilot to Open Check Valves

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU CP084P85V

$60.68/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Cracking Pressure	85 PSI, 5.9 BAR	Maximum Flow Rate	5 GAL/MIN, 19 L/MIN
Function	Single Pilot to Open Check	Flow Direction	2-3 Free Flow
Cracking Pressure	85 psi	Cavity Size	C08-3
Minimum Operating Temperature	-15 °F	Flow Rate	n/a
Actuation Type	Pilot Operated	Filter Efficiency Rating	SAE Class 4
Operating Temperature	-26 to 204 °C	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Pilot Location	1	Body Material	n/a
Installation Torque	23 lb-ft	Weight	0.05 kg
Maximum Operating Pressure	207 bar	Pilot Pressure Ratio	3:1
Division	Hydraulic Systems Division	Leak Rate	5
Maximum Operating Temperature	204 °C	For Fluid Type	Mineral-based Hydraulic Fluids
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	5 Gal/min
Maximum Inlet Pressure Rating	207 bar	Valve Material	Hardened Steel
Seal Material	Fluorocarbon
