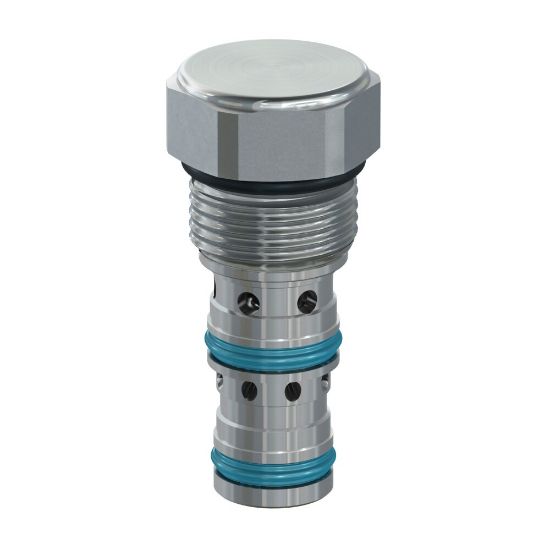

CPH104P - Single Pilot Operated, Pilot to Open Check Valves

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	69 in stock

SKU CPH104P

$62.21/each

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	D-Ring (Standard)
Cracking Pressure	20 PSI, 1.4 BAR	Maximum Flow Rate	8 GAL/MIN, 30 L/MIN
Operating Temperature	-35 to 200 °F	Maximum Operating Pressure	5000 psi
Filter Efficiency Rating	ISO 4406 18/16/13	Actuation Type	Pilot Operated
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Division	Hydraulic Systems Division
Installation Torque	65 Nm	Body Material	n/a
Pilot Location	1	Weight	0.2 lb
Pilot Pressure Ratio	4:1	Division	Hydraulic Cartridge Systems Division
Seal Material	D-Ring (Standard)	Maximum Flow Rate	30 L/min
Valve Material	Steel	Maximum Operating Temperature	93 °C
Leak Rate	2	For Fluid Type	Synthetic Hydraulic Fluids
Function	Single Pilot to Open Check	Maximum Inlet Pressure Rating	5000 psi
Cracking Pressure	1.4 bar	Flow Direction	2-3 Free Flow
Minimum Operating Temperature	-37 °C	Cavity Size	C10-3
Flow Rate	n/a
