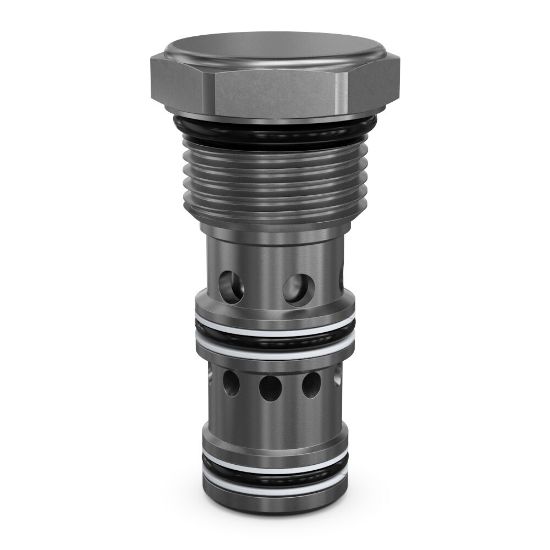

CPH124P - Single Pilot Operated, Pilot to Open Check Valves

Name: CPH124P - Single Pilot Operated, Pilot to Open Check Valves
SKU: CPH124P
Price: 91.79 USD
Availability: LimitedAvailability

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

Manufacturer: Parker

Availability:

1 Limited Stock

Olivette, MO

Partner Available:

20 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU CPH124P

$91.79/each

Qty:

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Cracking Pressure	25 PSI, 1.7 BAR	Maximum Flow Rate	20 GAL/MIN, 75 L/MIN
Minimum Operating Temperature	-30 °F	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Flow Rate	n/a	Operating Temperature	-30 to 250 °F
Weight	0.44 lb	Maximum Operating Pressure	5000 psi
Body Material	n/a	Pilot Location	1
Actuation Type	Pilot Operated	Filter Efficiency Rating	SAE Class 4
Installation Torque	76 Nm	Pilot Pressure Ratio	3:1
Division	Hydraulic Systems Division	Maximum Flow Rate	75 L/min
Division	Hydraulic Cartridge Systems Division	For Fluid Type	Mineral-based Hydraulic Fluids
Seal Material	Nitrile	Valve Material	Hardened Steel
Leak Rate	5	Maximum Operating Temperature	250 °F
Maximum Inlet Pressure Rating	5000 psi	Function	Single Pilot to Open Check
Flow Direction	2-3 Free Flow	Cracking Pressure	1.7 bar
Cavity Size	C12-3
