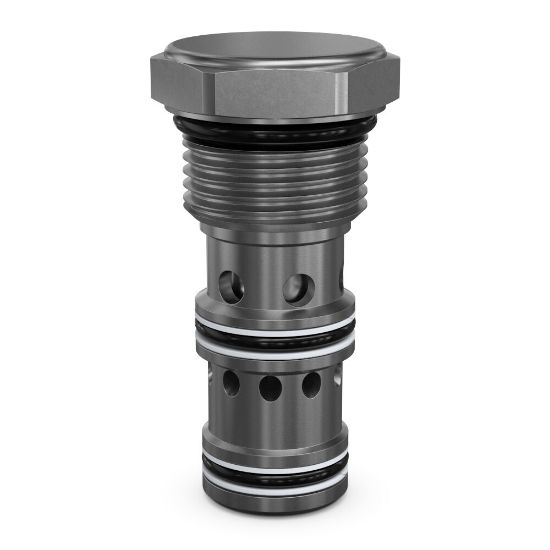

CPH124PV - Single Pilot Operated, Pilot to Open Check Valves

Parker’s P.O. check valve assemblies allow flow up to 150 lpm (40 gpm) with pressures up to 420 bar (6,000 psi). Return flow can be enable by an external pilot supply, which shifts the internal poppet into an open position.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU CPH124PV

$103.97/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Cracking Pressure	25 PSI, 1.7 BAR	Maximum Flow Rate	20 GAL/MIN, 75 L/MIN
Division	Hydraulic Systems Division	Pilot Pressure Ratio	3:1
Leak Rate	5	Maximum Operating Temperature	204 °C
For Fluid Type	Synthetic Hydraulic Fluids	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	75 L/min	Maximum Inlet Pressure Rating	5000 psi
Seal Material	Fluorocarbon	Valve Material	Steel
Flow Direction	2-3 Free Flow	Function	Single Pilot to Open Check
Cracking Pressure	1.7 bar	Cavity Size	C12-3
Minimum Operating Temperature	-26 °C	Flow Rate	n/a
Actuation Type	Pilot Operated	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-26 to 204 °C
Body Material	n/a	Pilot Location	1
Weight	0.44 lb	Maximum Operating Pressure	350 bar
Installation Torque	56 lb-ft
