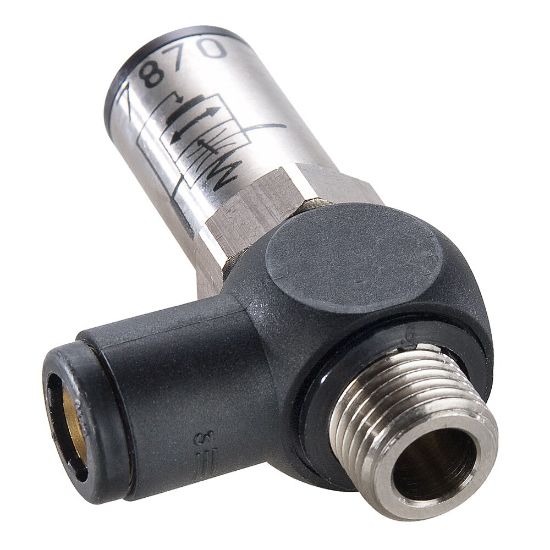

FC908-10M-4G - Slow Start Fittings

Slow start fittings protect your system by preventing sudden shocks. On start up, they control the pressure increase in the downstream circuit which helps prevent the risk of industrial accidents.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU FC908-10M-4G

$181.92/each

Products specifications

Attribute name	Attribute value
UOM	EA	Style	Tube to Pipe
Connection 2 Style	BSPP	Connection 2 Thread Size (inch)	na
Connection 1 Thread Size (inch)	na	Connection 2 Thread Size (mm)	1/4
Connection 1 Thread Size (mm)	na	Connection 1 Style	Push-to-Connect
Connection 1 Tube O.D. (mm)	10	Application	Pneumatics, Robotics, Textile, Semi-conductors, Packaging
Body Material	Nickel Plated Brass	Maximum Operating Pressure	150 psi
Minimum Operating Temperature	-15 °C	Maximum Operating Temperature	60 °C
Media	Compressed Air	Division	Fluid System Connectors Division
