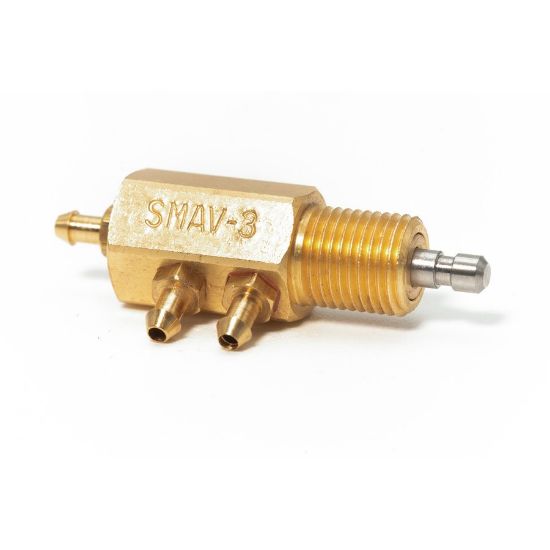

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

SMAV-3

Manufacturer: Clippard

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU SMAV-3

$25.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Series	MAV
Function	3-Way Normally-Closed	Type	Sub-Miniature
Operating Temperature Range	32 to 230° F	Medium	Air
Stem Travel	1/16 inch	Input	100 psig max.
Ports	3-56 with 1/16 inch ID Hose Barb	Flow	51 l/min @ 100 psig
Force	20 oz. Nominal	Maximum PSI	100 psig
