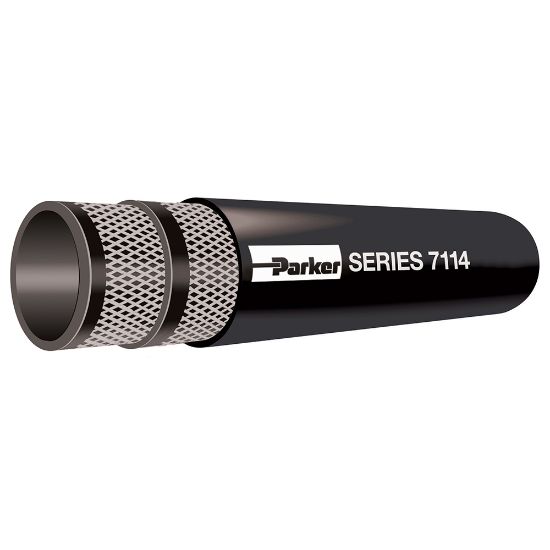

7114-100154A - SOFT-FLEX™ 2000 Softwall Gasoline Dispenser Hose, Series 7114

Soft-Flex 2000 Softwall Gasoline Dispenser Hose is designed to transfer refined fuels from powered dispensers to 180°F and 50 psi, Series 7114

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	1792 in stock

SKU 7114-100154A

$18.42/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Working Pressure (psi)	50
Hose I.D. (inch)	1	Inside Diameter	1 inch
Weight	0.47 lb	Maximum Operating Pressure	50 psi
Package Type	Reel	Outside Diameter	35.3 mm
Length per Package	250 ft	Division	Hose Products Division
Cover Color	Black	Media	Fuels (Biodiesel to B20 in dedicated service)
Maximum Operating Temperature	82 °C	Hose Inner Tube Material	Nitrile Butadiene Rubber (NBR)
Application	Petroleum Transfer	Hose Reinforcement Material	4 Plies of Textile with Static Wire
Specifications Met	UL 330/ULC (factory assemblies)	Cover Structure	Smooth
Minimum Bend Radius	8 inch	Minimum Operating Temperature	-40 °F
Cover Material	Chloroprene Rubber (CR)

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
