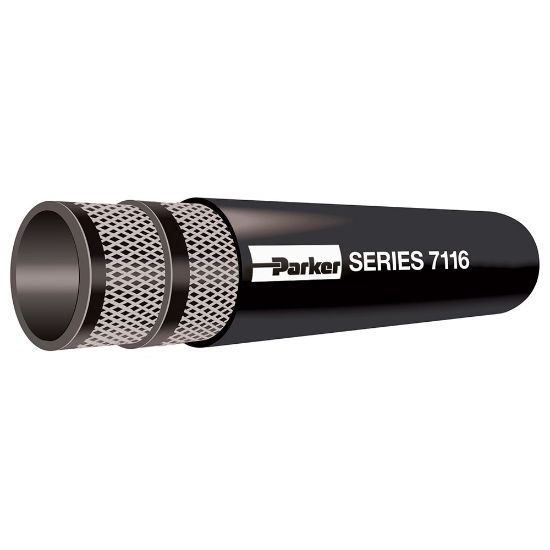

7116M-750 - SOFT-FLEX™ Diesel Exhaust Fluid (DEF) Dispenser Hose, Series 7116M

Soft-Flex Diesel Exhaust Fluid (DEF) Dispenser Hose is designed to transfer diesel exhaust fluid from powered dispensers to 212°F and 150 psi, Series 7116M

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	2342 in stock

SKU 7116M-750

$5.94/foot

Bypass upcharge for backordered quantity

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Maximum Working Pressure (psi)	150	Division	Hose Products Division
Application	Specialty	Media	Chemicals (Urea) - Check your fluid compatibility with our catalogue chart.
Maximum Operating Pressure	10.3 bar	Maximum Operating Temperature	212 °F
Minimum Operating Temperature	-40 °C	Specifications Met	n/a
Weight	0.34 lb/ft	Outside Diameter	29.4 mm
Cover Material	Ethylene Propylene Diene Monomer (EPDM)	Inside Diameter	19.1 mm
Compatible Fitting	HBL-C Series	Minimum Bend Radius	152 mm
Hose Inner Tube Material	Black	Hose Reinforcement Material	4 Plies of Textile
Cover Color	Black	Design Factor	4:1
Package Type	Reel	Length per Package	400 ft
Cover Structure	Smooth

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
