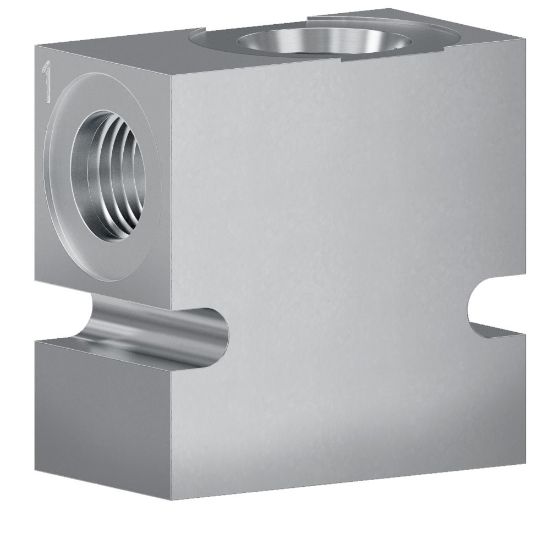

LB10513A - Special Bodies

Parker’s offering of special bodies and cavities for legacy valves to fit a variety of port options and applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU LB10513A

$63.92/each

Products specifications

Attribute name	Attribute value
UOM	EA	Number of Positions	2 way
Cavity Size	2X	Connection Type	SAE
Body Material	Aluminum	Connection Size	-6
Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body	Cavity Size	2X
Minimum Operating Temperature	Determined by Threaded Cartridge Valve installed in Line Body	Number of Positions	2 way
Division	Mobile Hydraulic Systems Division Europe	Body Material	Aluminum
Weight	0.45 kg	Maximum Operating Pressure	210 bar
Actuation Type	Determined by Threaded Cartridge Valve installed in Line Body	Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Maximum Operating Temperature	Determined by Threaded Cartridge Valve installed in Line Body
Seal Material	Determined by Threaded Cartridge Valve installed in Line Body	Division	Hydraulic Cartridge Systems Division
Connection Type	SAE	Connection Size	-6
