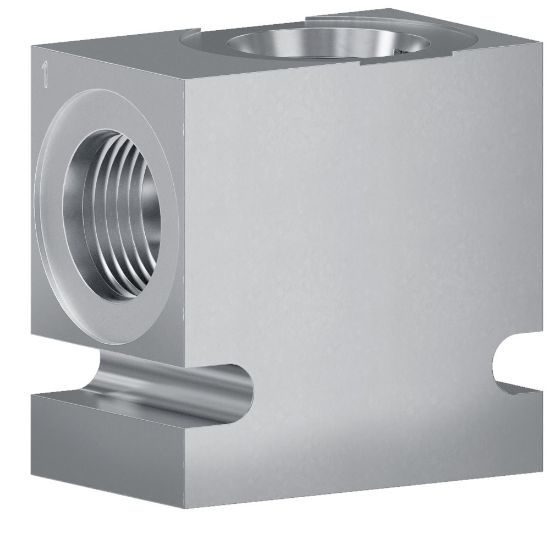

LB10543S - Special Bodies

Parker’s offering of special bodies and cavities for legacy valves to fit a variety of port options and applications.

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 176 days
Partner Available:	Backordered

SKU LB10543S

$98.70/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	SAE
Cavity Size	2R	Connection Size	-8
Body Material	Steel	Number of Positions	2 way
Division	Mobile Hydraulic Systems Division Europe	Body Material	Steel
Maximum Operating Pressure	5000 psi	Actuation Type	Determined by Threaded Cartridge Valve installed in Line Body
Weight	0.68 kg	Maximum Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body
Seal Material	Determined by Threaded Cartridge Valve installed in Line Body	Maximum Operating Temperature	Determined by Threaded Cartridge Valve installed in Line Body
Division	Hydraulic Cartridge Systems Division	Connection Type	SAE
For Fluid Type	Mineral-based or synthetic hydraulic fluids	Connection Size	-8
Flow Rate	Determined by Threaded Cartridge Valve installed in Line Body	Minimum Operating Temperature	Determined by Threaded Cartridge Valve installed in Line Body
Number of Positions	2 way	Cavity Size	2R
