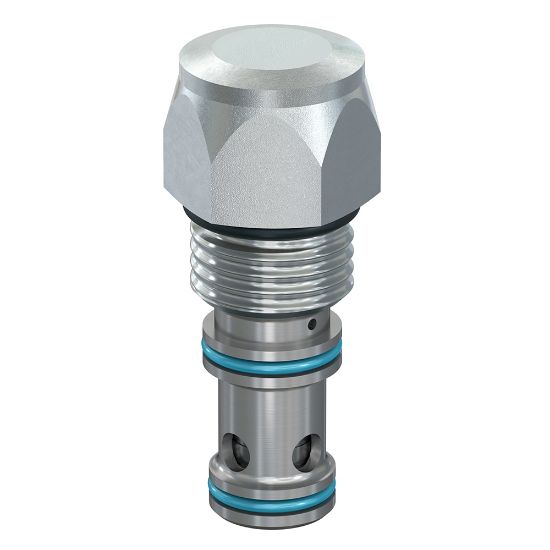

10SLC2-A-75 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 10SLC2-A-75

$102.01/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Normally Closed	Switching Pressure	75 PSI, 5.2 BAR
Flow Direction	Nose to Side (1-2)	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
Dampening Orifice Included	No	For Fluid Type	Mineral-based Hydraulic Fluids
Division	Hydraulic Cartridge Systems Division	Maximum Operating Temperature	225 °F
Valve Material	Steel	Leak Rate	82
Seal Material	Polyurethane EPS	Maximum Flow Rate	57 L/min
Function	Logic Valve	Maximum Inlet Pressure Rating	3500 psi
Flow Direction	Nose to Side (1-2)	Cavity Size	C10-3S
Dampening Orifice Included	No	Minimum Operating Temperature	-35 °F
Switching Pressure	75 psi	Flow Rate	n/a
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Operating Temperature	-37 to 107 °C
Vented	Internal	Actuation Type	Pilot to Close
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Operating Pressure	240 bar
Weight	0.3 lb	Configuration	Normally Closed (NC)
Pilot Location	External	Body Material	n/a
Division	Hydraulic Systems Division	Installation Torque	22 Nm
Operation Type	Pilot Operated
