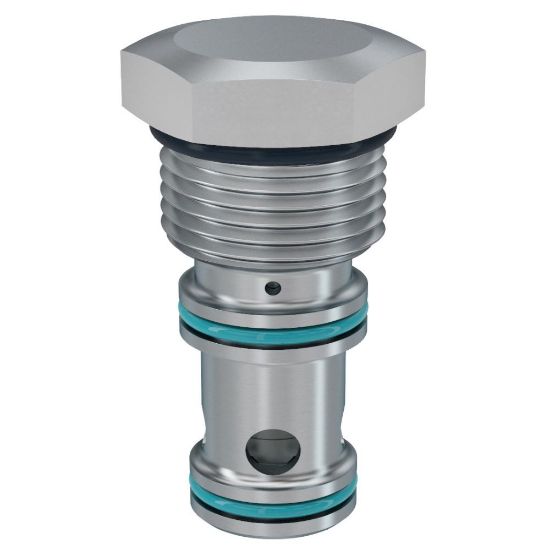

10SLC2-B-25 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 10SLC2-B-25

$106.58/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Normally Closed	Switching Pressure	25 PSI, 1.7 BAR
Flow Direction	Nose to Side (1-2)	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
Dampening Orifice Included	Yes	Minimum Operating Temperature	-37 °C
Dampening Orifice Included	Yes	Switching Pressure	1.7 bar
Operating Temperature	-35 to 225 °F	Flow Rate	n/a
Configuration	Normally Closed (NC)	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Maximum Operating Pressure	3500 psi	Vented	External
Actuation Type	Vent to Open	Filter Efficiency Rating	ISO 4406 18/16/13
Body Material	n/a	Pilot Location	Internal
Weight	0.14 kg	Installation Torque	16 lb-ft
Division	Hydraulic Systems Division	Operation Type	Pilot Operated
Maximum Flow Rate	57 L/min	For Fluid Type	Mineral-based Hydraulic Fluids
Division	Hydraulic Cartridge Systems Division	Seal Material	Polyurethane EPS
Valve Material	Hardened Steel	Maximum Operating Temperature	107 °C
Maximum Inlet Pressure Rating	240 bar	Leak Rate	82
Function	Logic Valve	Flow Direction	Nose to Side (1-2)
Cavity Size	C10-3S
