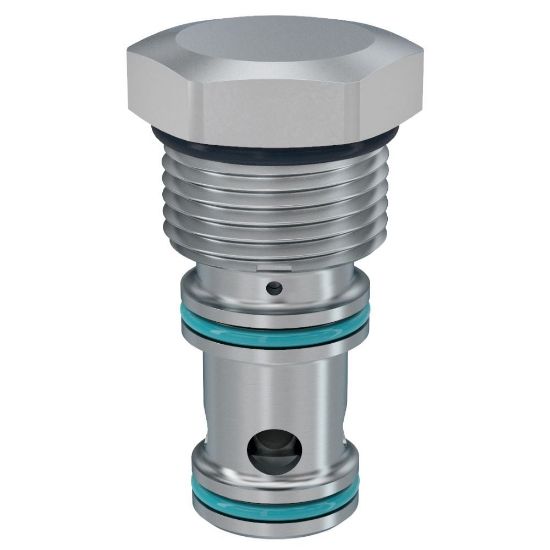

10SLC3-A-100 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 10SLC3-A-100

$105.71/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Normally Open	Switching Pressure	100 PSI, 6.9 BAR
Flow Direction	Side to Nose (2-1)	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
Dampening Orifice Included	No	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	57 L/min	Leak Rate	82
For Fluid Type	Synthetic Hydraulic Fluids	Seal Material	Polyurethane EPS
Valve Material	Steel	Maximum Inlet Pressure Rating	240 bar
Maximum Operating Temperature	225 °F	Function	Logic Valve
Flow Direction	Side to Nose (2-1)	Cavity Size	C10-3S
Minimum Operating Temperature	-37 °C	Dampening Orifice Included	No
Switching Pressure	100 psi	Configuration	Normally Open (NO)
Operating Temperature	-37 to 107 °C	Flow Rate	n/a
Actuation Type	Pilot to Close	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Filter Efficiency Rating	SAE Class 4	Weight	0.14 kg
Vented	Internal	Maximum Operating Pressure	240 bar
Installation Torque	16 lb-ft	Body Material	n/a
Pilot Location	External	Division	Hydraulic Systems Division
Operation Type	Pilot Operated
