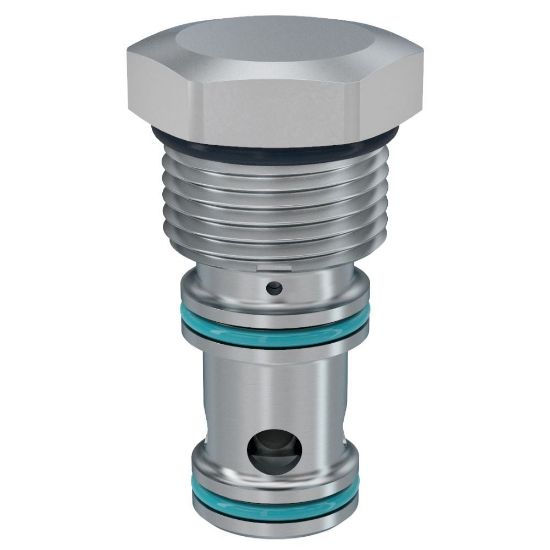

10SLC3-A-75 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 10SLC3-A-75

$105.71/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Normally Open	Switching Pressure	75 PSI, 5.2 BAR
Flow Direction	Side to Nose (2-1)	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
Dampening Orifice Included	No	Cavity Size	C10-3S
Minimum Operating Temperature	-37 °C	Dampening Orifice Included	No
Switching Pressure	5.2 bar	Operating Temperature	-37 to 107 °C
Actuation Type	Pilot to Close	Flow Rate	n/a
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Configuration	Normally Open (NO)	Vented	Internal
Body Material	n/a	Installation Torque	22 Nm
Maximum Operating Pressure	240 bar	Weight	0.14 kg
Pilot Location	External	Division	Hydraulic Systems Division
Operation Type	Pilot Operated	For Fluid Type	Mineral-based Hydraulic Fluids
Leak Rate	82	Maximum Flow Rate	57 L/min
Division	Hydraulic Cartridge Systems Division	Maximum Operating Temperature	225 °F
Valve Material	Steel	Seal Material	Polyurethane EPS
Maximum Inlet Pressure Rating	240 bar	Flow Direction	Side to Nose (2-1)
Function	Logic Valve
