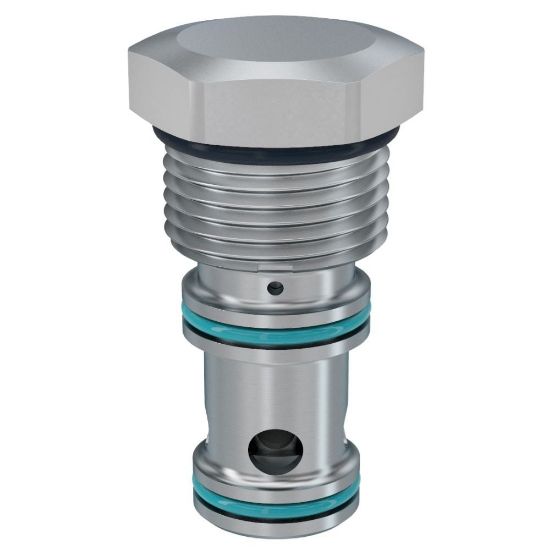

10SLC3-B-50V - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 10SLC3-B-50V

$114.41/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Fluorocarbon
Configuration	Normally Open	Switching Pressure	50 PSI, 3.5 BAR
Flow Direction	Side to Nose (2-1)	Maximum Flow Rate	15 GAL/MIN, 57 L/MIN
Dampening Orifice Included	Yes	Seal Material	Fluorocarbon
Valve Material	Steel	Maximum Inlet Pressure Rating	240 bar
Function	Logic Valve	Flow Direction	Side to Nose (2-1)
Cavity Size	C10-3S	Minimum Operating Temperature	-26 °C
Switching Pressure	3.5 bar	Dampening Orifice Included	Yes
Flow Rate	n/a	Vented	External
Operating Temperature	-15 to 400 °F	Maximum Operating Pressure	240 bar
Configuration	Normally Open (NO)	Actuation Type	Vent to Close
Filter Efficiency Rating	SAE Class 4	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Division	Hydraulic Systems Division	Installation Torque	22 Nm
Body Material	n/a	Pilot Location	Internal
Weight	0.14 kg	Operation Type	Pilot Operated
Maximum Flow Rate	57 L/min	Division	Hydraulic Cartridge Systems Division
Leak Rate	82	For Fluid Type	Synthetic Hydraulic Fluids
Maximum Operating Temperature	400 °F
