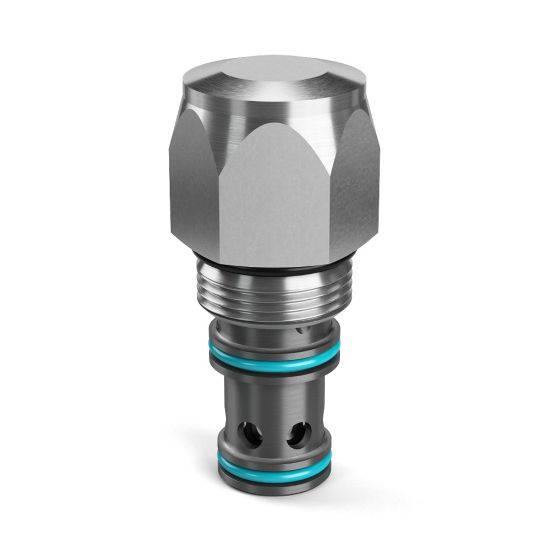

16SLC2-A-100 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 23 days
Partner Available:	Backordered

SKU 16SLC2-A-100

$115.49/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Normally Closed	Switching Pressure	100 PSI, 6.9 BAR
Flow Direction	Nose to Side (1-2)	Dampening Orifice Included	No
Maximum Flow Rate	50 GAL/MIN, 189 L/MIN	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Maximum Operating Pressure	3500 psi
Configuration	Normally Closed (NC)	Actuation Type	Pilot to Close
Vented	Internal	Operating Temperature	-35 to 225 °F
Dampening Orifice Included	No	Flow Rate	n/a
Operation Type	Pilot Operated	Installation Torque	40 lb-ft
Weight	0.78 lb	Pilot Location	External
Division	Hydraulic Systems Division	Body Material	n/a
Seal Material	Polyurethane EPS	Maximum Inlet Pressure Rating	3500 psi
Valve Material	Steel	Maximum Flow Rate	50 Gal/min
Division	Hydraulic Cartridge Systems Division	Leak Rate	82
For Fluid Type	Mineral-based Hydraulic Fluids	Maximum Operating Temperature	107 °C
Switching Pressure	100 psi	Minimum Operating Temperature	-37 °C
Cavity Size	C16-3S	Flow Direction	Nose to Side (1-2)
Function	Logic Valve
