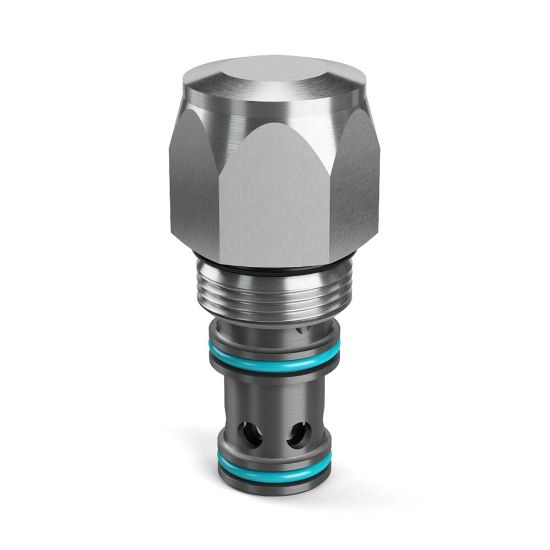

16SLC2-B-75 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 16SLC2-B-75

$114.84/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Normally Closed	Switching Pressure	75 PSI, 5.2 BAR
Flow Direction	Nose to Side (1-2)	Dampening Orifice Included	Yes
Maximum Flow Rate	50 GAL/MIN, 189 L/MIN	Flow Direction	Nose to Side (1-2)
Function	Logic Valve	Leak Rate	82
Maximum Operating Temperature	225 °F	Maximum Inlet Pressure Rating	240 bar
Seal Material	Polyurethane EPS	Valve Material	Steel
Switching Pressure	5.2 bar	Dampening Orifice Included	Yes
Cavity Size	C16-3S	Minimum Operating Temperature	-37 °C
Body Material	n/a	Pilot Location	Internal
Filter Efficiency Rating	ISO 4406 18/16/13	Vented	External
Maximum Operating Pressure	3500 psi	Weight	0.33 kg
Installation Torque	54 Nm	Flow Rate	n/a
Actuation Type	Vent to Open	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operating Temperature	-35 to 225 °F	Configuration	Normally Closed (NC)
For Fluid Type	Synthetic Hydraulic Fluids	Division	Hydraulic Cartridge Systems Division
Maximum Flow Rate	189 L/min	Division	Hydraulic Systems Division
Operation Type	Pilot Operated
