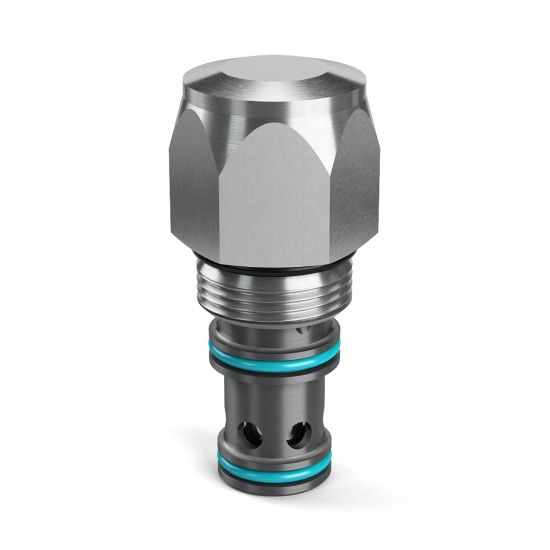

16SLC3-B-150 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 16SLC3-B-150

$127.02/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Normally Open	Switching Pressure	150 PSI, 10.3 BAR
Flow Direction	Side to Nose (2-1)	Dampening Orifice Included	Yes
Maximum Flow Rate	50 GAL/MIN, 189 L/MIN	Maximum Inlet Pressure Rating	240 bar
Seal Material	Polyurethane EPS	Valve Material	Steel
Maximum Operating Temperature	225 °F	Leak Rate	82
Division	Hydraulic Cartridge Systems Division	Maximum Flow Rate	189 L/min
For Fluid Type	Synthetic Hydraulic Fluids	Minimum Operating Temperature	-37 °C
Cavity Size	C16-3S	Function	Logic Valve
Flow Direction	Side to Nose (2-1)	Actuation Type	Vent to Close
Flow Rate	n/a	Filter Efficiency Rating	ISO 4406 18/16/13
Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)	Configuration	Normally Open (NO)
Operating Temperature	-37 to 107 °C	Switching Pressure	150 psi
Dampening Orifice Included	Yes	Operation Type	Pilot Operated
Division	Hydraulic Systems Division	Body Material	n/a
Pilot Location	Internal	Weight	0.78 lb
Maximum Operating Pressure	3500 psi	Installation Torque	40 lb-ft
Vented	External
