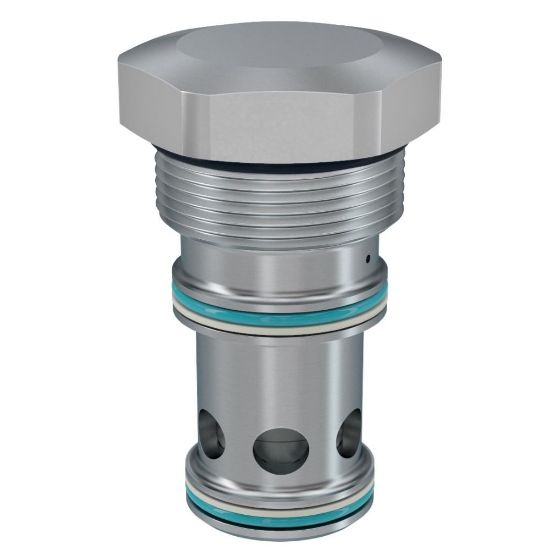

20SLC2-B-100 - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	Backordered

SKU 20SLC2-B-100

$180.09/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Polyurethane EPS
Configuration	Normally Closed	Switching Pressure	100 PSI, 6.9 BAR
Flow Direction	Nose to Side (1-2)	Dampening Orifice Included	Yes
Maximum Flow Rate	80 GAL/MIN, 303 L/MIN	Division	Hydraulic Cartridge Systems Division
Division	Hydraulic Systems Division	Operating Temperature	-35 to 225 °F
Flow Rate	n/a	Actuation Type	Vent to Open
Maximum Flow Rate	303 L/min	Maximum Operating Pressure	240 bar
Maximum Operating Temperature	225 °F	Minimum Operating Temperature	-35 °F
Body Material	n/a	Seal Material	Polyurethane EPS
Flow Direction	Nose to Side (1-2)	Weight	1.78 lb
Operation Type	Pilot Operated	Filter Efficiency Rating	SAE Class 4
Configuration	Normally Closed (NC)	For Fluid Type	Mineral-based Hydraulic Fluids
Function	Logic Valve	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Vented	External	Leak Rate	82
Cavity Size	C20-3S	Pilot Location	Internal
Valve Material	Steel	Switching Pressure	100 psi
Installation Torque	113 Nm	Maximum Inlet Pressure Rating	3500 psi
Dampening Orifice Included	Yes
