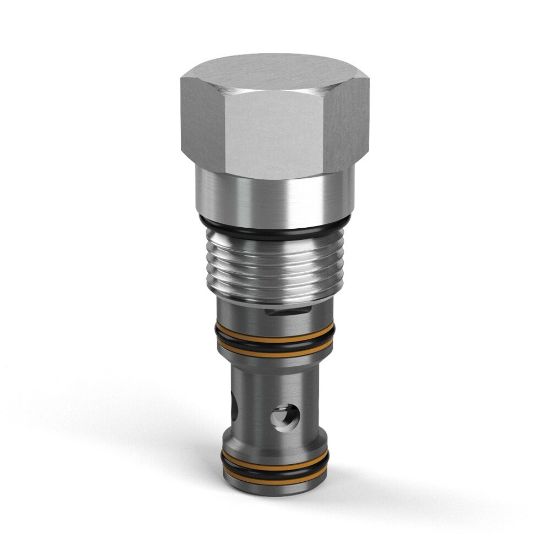

R04F3-10.0N - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU R04F3-10.0N

$149.93/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Closed	Flow Direction	Nose to Side (1-2)
Dampening Orifice Included	Yes	Switching Pressure	145 PSI, 10 BAR
Maximum Flow Rate	45 GPM, 170 L/MIN	Division	Hydraulic Cartridge Systems Division
Division	Mobile Hydraulic Systems Division Europe	Operating Temperature	-30 to +250 °F
Flow Rate	26 @ 100 PSI (7 BAR) Nominal Gal/min	Actuation Type	Vent to Open
Maximum Flow Rate	45 Gal/min	Maximum Operating Pressure	420 bar
Maximum Operating Temperature	+250 °F	Minimum Operating Temperature	-34 °C
Body Material	N/A	Seal Material	Nitrile
Flow Direction	Nose to Side (1-2)	Weight	0.3 lb
Operation Type	Pilot Operated	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Normally Closed	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Function	Logic Valve	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Vented	Internal	Leak Rate	50 @ 1450 PSI (BAR) cm3/min
Cavity Size	C10-3S	Pilot Location	Internal
Valve Material	All parts steel. All operating parts hardened steel	Switching Pressure	145 psi
Installation Torque	50 Nm	Maximum Inlet Pressure Rating	420 bar
Dampening Orifice Included	Yes
