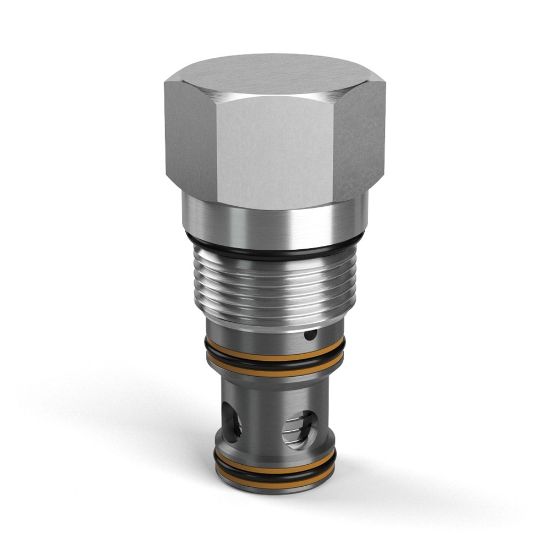

R06G3-10.0N - Spool Type Logic Element

Parker’s spool type logic elements can be used for direction and pressure/flow control, and are available normally-open and normally-closed with internal or external pilots for pressures up to 420 bar (6000 psi) and flows up to 500 lpm (132 gpm).

Manufacturer: Parker

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU R06G3-10.0N

$244.87/each

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Configuration	Normally Open	Flow Direction	Side to Nose (2-1)
Dampening Orifice Included	Yes	Maximum Flow Rate	42 GAL/MIN, 160 L/MIN
Switching Pressure	145 PSI, 10 BAR	Division	Hydraulic Cartridge Systems Division
Division	Mobile Hydraulic Systems Division Europe	Operating Temperature	-30 to +250 °F
Flow Rate	90 @ 100 PSI (7 BAR) Nominal L/min	Actuation Type	Vent to Close
Maximum Flow Rate	42 Gal/min	Maximum Operating Pressure	6000 psi
Maximum Operating Temperature	+121 °C	Minimum Operating Temperature	-34 °C
Body Material	N/A	Seal Material	Nitrile
Flow Direction	Side to Nose (2-1)	Weight	0.84 lb
Operation Type	Pilot Operated	Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4
Configuration	Normally Open	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Function	Logic Valve	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Vented	External	Leak Rate	125 @ 1450 PSI (BAR) cm3/min
Cavity Size	C16-3S	Pilot Location	Internal
Valve Material	All parts steel. All operating parts hardened steel	Switching Pressure	10 bar
Installation Torque	74 lb-ft	Maximum Inlet Pressure Rating	420 bar
Dampening Orifice Included	Yes
